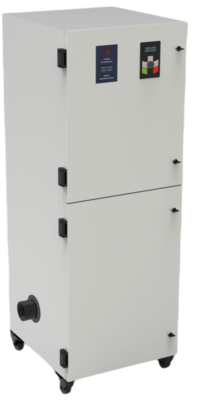

HP255-L

HP255-L

Suitable for： Laser cutting（PCB）
86 13810114726  Contact us
Product Detail
Type
HP255-L
Size (Depth × Width × Height)（mm）500 × 480 × 1240
Weight (kg)95
Max Motor Pressure (Pa)25000
Max Flowrate (m³/h)250
Wattage (W)2200
Voltage (V)220
Sound rating (dB)66
Features and advantages
Core technology
- Intelligent (IQ) operating system
- High Efficiency Particle Arrestor (HEPA) technology
- Automatic flow control (AFC) technology
1. Designed specifically for fixing workpieces during flexible PCB cutting while purifying smoke generated by laser cutting.
2. It features strong suction, high filtration efficiency, adjustable flow rate, and low noise levels.
3. One machine can perform both fixation and purification functions.
4. The system uses high-pressure, high-flow branded fans to effectively fix workpieces and absorb smoke particles, prolonging the lifespan of filter cores.
5. The filtration system consists of pre-filters and main filters.
6. Pre-filters trap larger particles to prevent early clogging of main filters.
7. Main filters include reinforced HEPA and chemical filters.
8. HEPA filters remove 99.997% of particles down to 0.3 microns in size.
9. Chemical filters effectively eliminate harmful gases and odors from the airflow.

Product Detail
Power system
Control system

The  control system of CHP series adopts variable frequency speed regulation, which can adjust the flow and pressure as needed, and can use external control signals to control the fan speed, achieving automatic adjustment of the purifier flow and pressure; the usage of the filter element could be monitored  at any time through the screen pressure difference display.

Differential pressure gauge indicates filter blockage status.

Frequency converter controls speed adjustment, 5-50 Hz.


Tip: The smoke can be sucked away is the best, as far as possible to use a small vacuum degree, in order to prolong the service life of the filter element.

Filtration system

LE is composed of two filters - pre-filter and main filter. Pre-filter can inhale the bigger granule to protect main filter from walling up earlier. Main filter includes high-efficiency HEPA filter and chemical filter, high-efficiency HEPA filter can filtrate 99.997% granule which diameter is 0.3µm.Chemical can filtrate hazardous gas efficiently from the air flow.

1. Polluted airflow entering the machine; 2. Organ shaped pre filter bag (adsorbs relatively large dust particles in the airflow to avoid blockage of the main filter and expand its service life ); 3. HEPA (High Efficiency Particle Arrestor) filters: these filters remove 99.997% of all particles above 0.3 micron. 4. Chemical filter layer and activated carbon layer (effectively removing harmful gases and irritating odors in the airflow); 5. The fresh air goes into the workshop again.

Packing list

Stainless steel flexible arm

(Conical cowl - Optional)

Prefilter
Mainfilter
Pipework
Fume extractor
