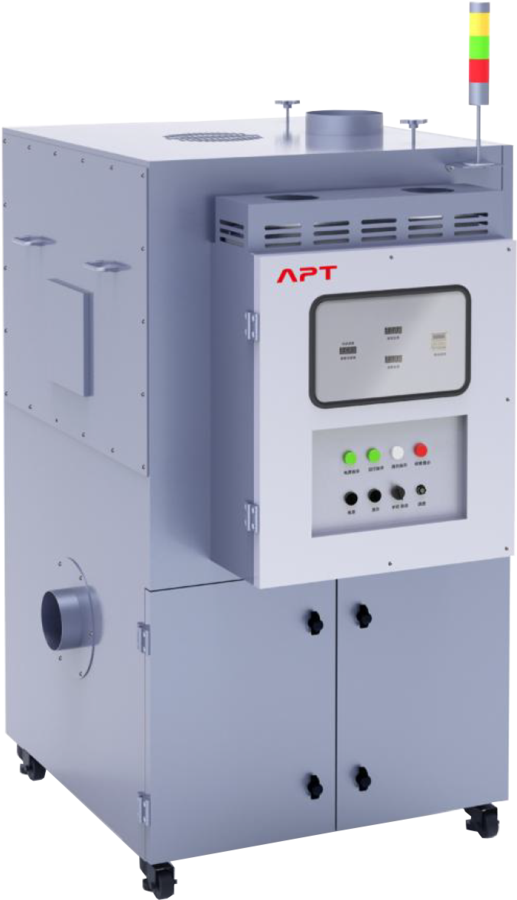

Vertical Medium Pressure Explosion-proof Dust Collector
CMP- EX Series
Product Introduction
Specifically designed for explosive dust applications! Constructed with thick, fully welded steel plate and equipped with explosion-proof VFD fan, anti-static filter cartridges, explosion-proof sensors, independent explosion-proof electrical enclosure, venting panels, and other safety devices to ensure safe operation with flammable dust.

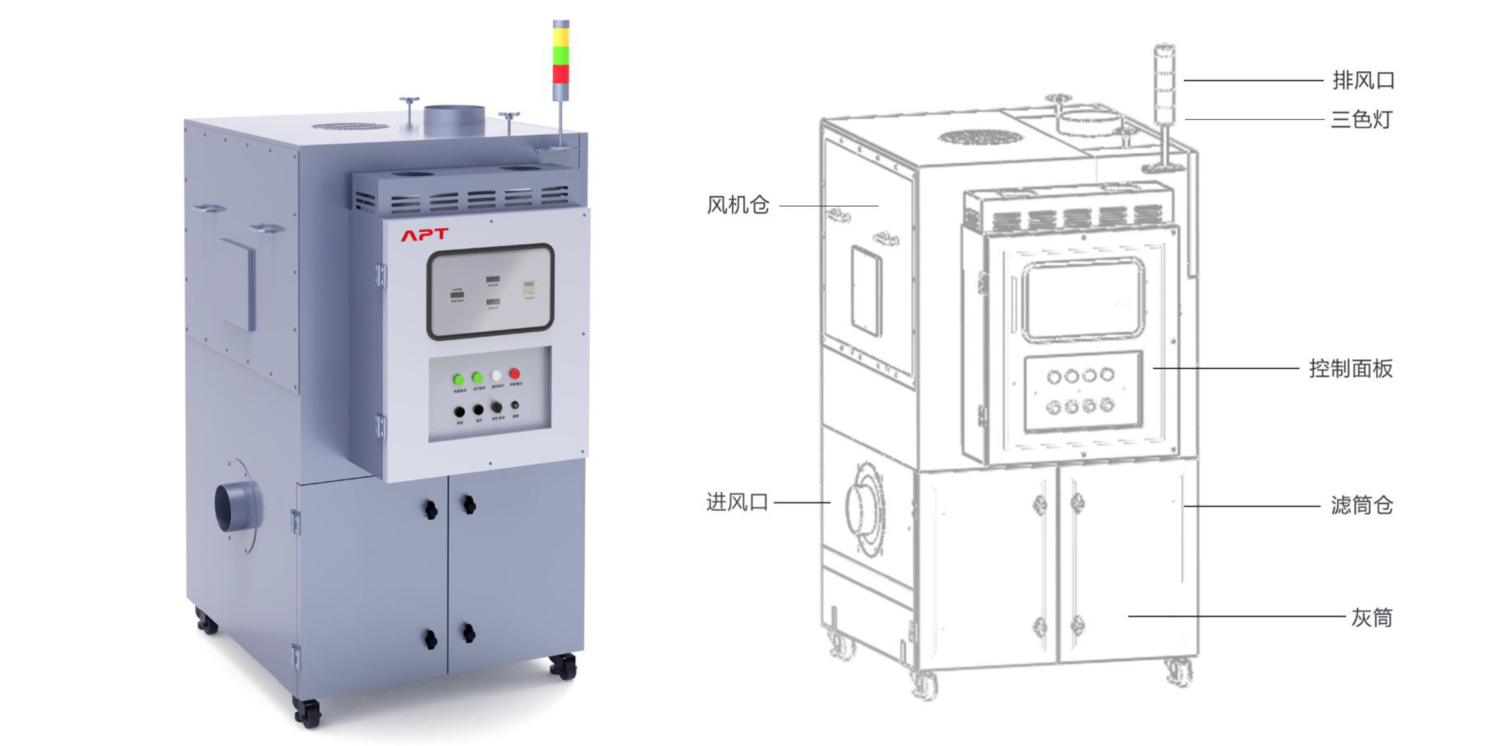

Wind turbine silos
Filter Cartridge Silo
Dust Hopper
Control Panel
Air Outlet
Three-color Indicator Light
Air Inlet
Dust Collector Purification Principle
With the main system fan operating, dust-laden gas enters the bottom filter cartridge chamber through the lower inlet. Dust accumulates on cartridge surfaces while filtered clean air passes into the upper clean-air plenum and discharges through the outlet. Continuous operation increases dust buildup and filtration resistance. To maintain system performance, the pulse controller initiates cartridge cleaning based on differential pressure or timing when resistance exceeds the preset limit.

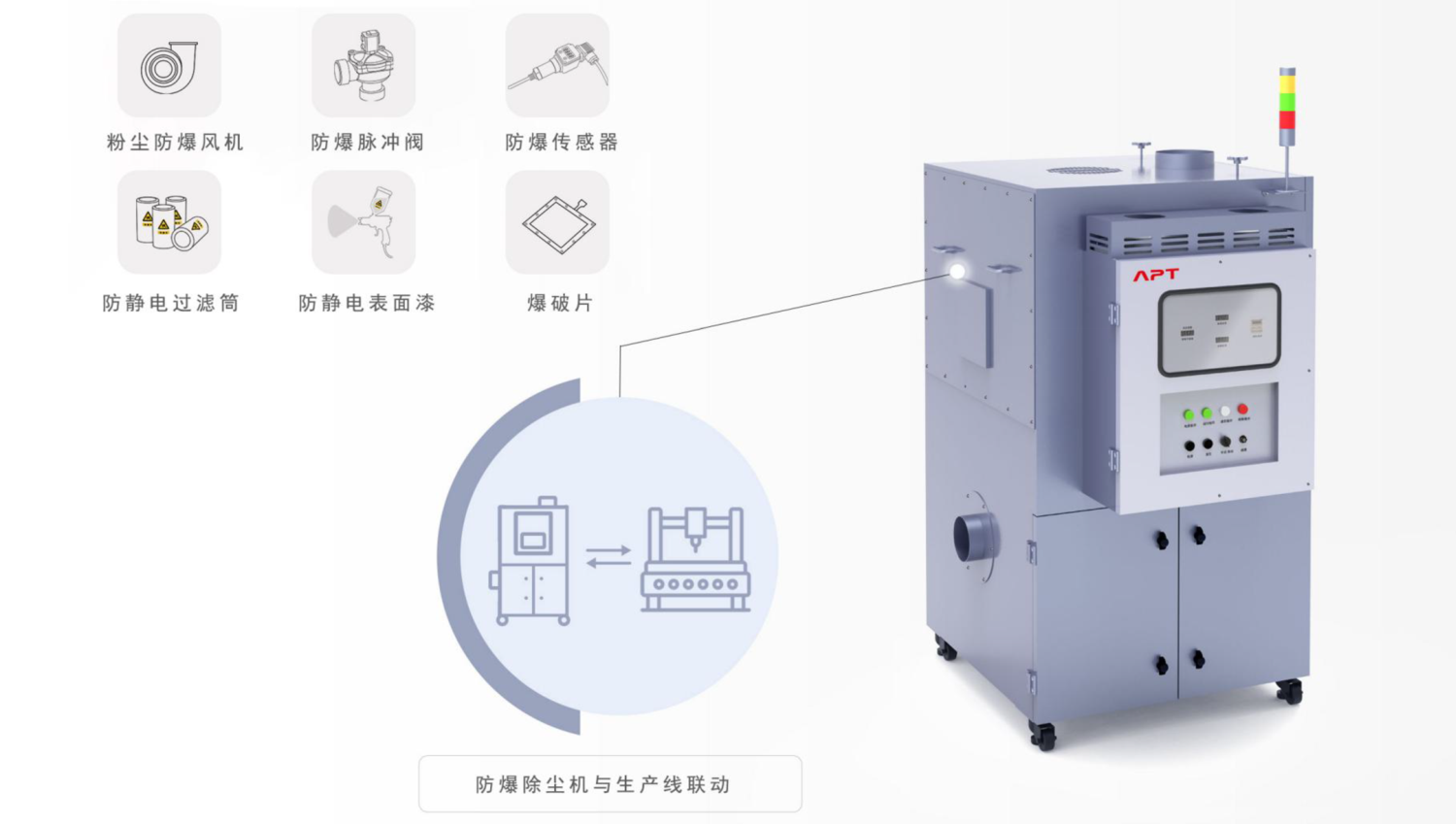

Dust Explosion-proof Fan
Anti-static Filter Cartridge
Explosion-proof Sensor
Explosion-proof Pulse Valve
Anti-static Surface Paint
Bursting Disc
Explosion-proof Dust Collector Integrated with Production Line
Product Features
- Independent explosion-proof electrical box, dust explosion-proof fan, explosion-proof pulse valve, explosion-proof sensors, anti-static filter cartridges, anti-static surface paint, rupture disc, and other safety features ensure safe operation
- Automatic pulse control system for differential-pressure or timed cleaning; online back-flushing without production interruption
- Real-time temperature monitoring with automatic alarm and shutdown to reduce fire and explosion risks
- Quick-clamp cartridge design for fast replacement; suspended cartridges ensure effective dust separation and cleaning
- Ergonomic design for user-friendly operation
- Compact design with small footprint for easy indoor installation
- Inlet baffle buffers airflow impact on cartridges and prevents dust rebound during shutdown
- Leveling casters for easy mobility and positioning
